Triangular Fork Extensions

£635.00£865.00 + VAT

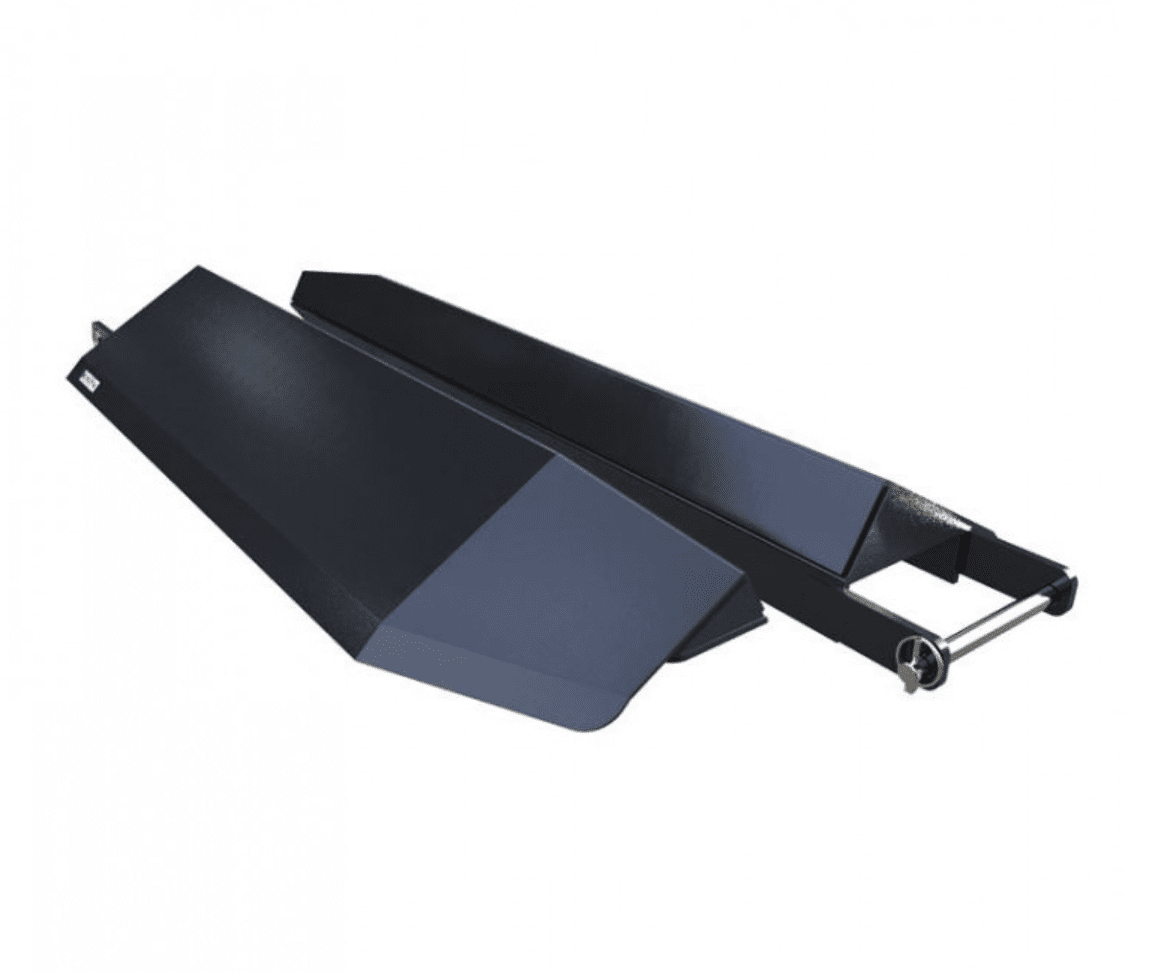

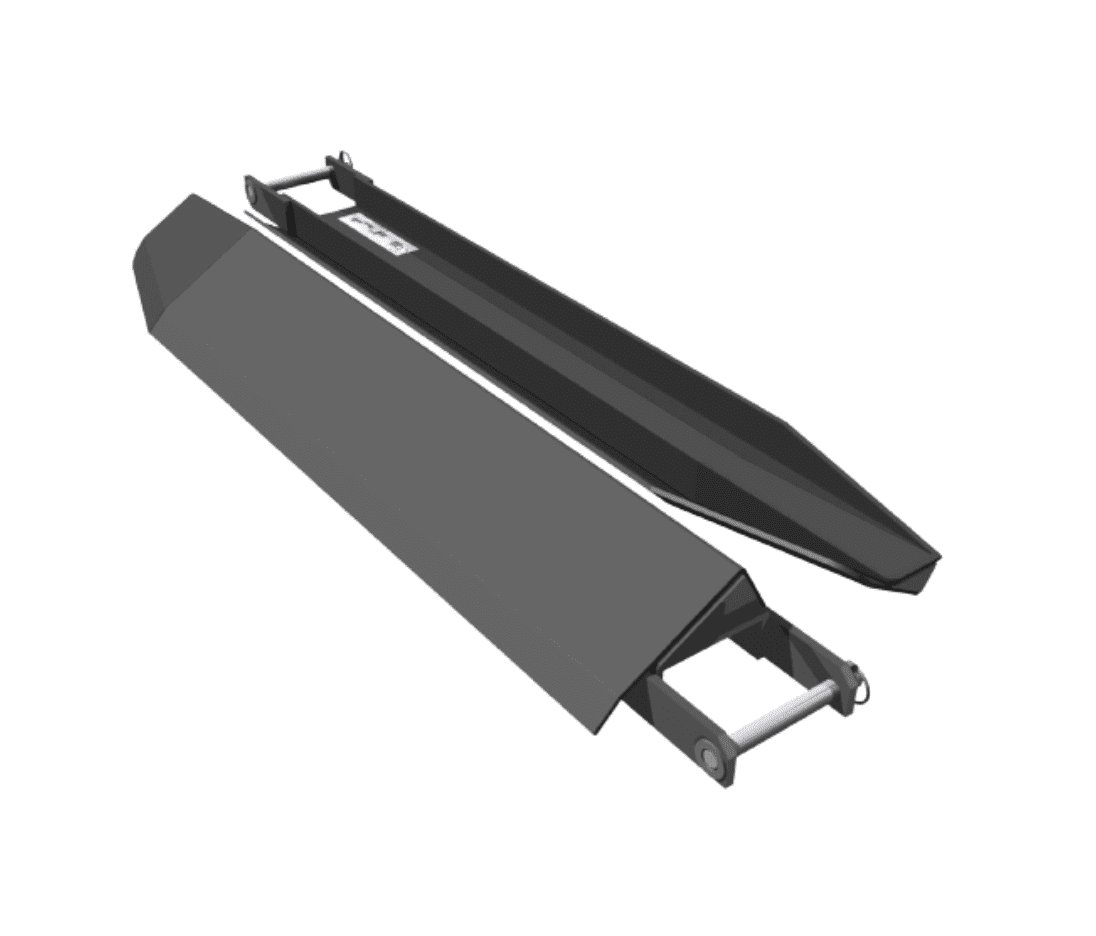

The Triangular Fork Extensions come with an angled face plate to allow cylindrical loads such as paper reels, cable drums etc.

Clear

Offering all the same characteristics as our heavy duty fork extensions, these Triangular Fork Extensions come with the added feature of an angled face plate to allow cylindrical loads such as paper reels, cable drums etc. to be handled with a forklift without the product rolling off the forks.

The Triangular Fork Extensions are manufactured from heavy duty 8mm thick steel with additional 5mm thick internal strengthening plates. We also incorporate a fully formed profile toe with end cap for added strength.

Fixed retaining bars (removable pin is used instead when sleeve length is greater than 2000mm) safely secures the fork sleeves to the truck forks.

Manufactured to conform to ISO 13284 British Standards, our triangular fork sleeves offer the perfect solution for handling rolled products on the forks.

Key features:

• 8mm pressed steel with additional 5mm thick internal strengthening plates for added strength

• Angled face plate to allow cylindrical loads to he handled without rolling off the forks

• Profiled toe with profiled end cap for added strength

• Fixed retaining bar (retaining pins are used when extension length greater than 2000mm) for safely securing to the truck forks

• ‘CE’ marked and supplied with Certificate of Conformity to meet Health & Safety Regulations

Available Heavy Duty Fork Extensions sizes:

Model 100/1525 | Fork Width 100mm | Extension Length 1525mm | Max Fork Section 100mm x 50mm

Model 100/1830 | Fork Width 100mm | Extension Length 1830mm | Max Fork Section 100mm x 50mm

Model 125/1525 | Fork Width 125mm | Extension Length 1525mm | Max Fork Section 125mm x 50mm

Model 125/1830 | Fork Width 125mm | Extension Length 1830mm | Max Fork Section 125mm x 50mm

Model 150/1525 | Fork Width 150mm | Extension Length 1525mm | Max Fork Section 150mm x 60mm

Model 150/1830 | Fork Width 150mm | Extension Length 1830mm | Max Fork Section 150mm x 60mm

Need a different type of forklift attachment? View our full range here.

If you have any questions relating to this product or any in our range then please call 0121 243 9717 or email sales@tippingskips.co.uk and one of our team will be on hand to discuss your requirements, lead times, delivery options or simply advise on the most appropriate equipment for your needs.

We are pleased to be listed on BuilderExchange.co.uk



Additional information

Size

Model 100/1525 – Fork Width 100mm – Extension Length 1525mm – Max Fork Section 100mm x 50mm, Model 100/1830 – Fork Width 100mm – Extension Length 1830mm – Max Fork Section 100mm x 50mm, Model 125/1525 – Fork Width 125mm – Extension Length 1525mm – Max Fork Section 125mm x 50mm, Model 125/1830 – Fork Width 125mm – Extension Length 1830mm – Max Fork Section 125mm x 50mm, Model 150/1525 – Fork Width 150mm – Extension Length 1525mm – Max Fork Section 150mm x 60mm, Model 150/1830 – Fork Width 150mm – Extension Length 1830mm – Max Fork Section 150mm x 60mm
