Heavy Duty Fork Extensions

£260.00 – £1,060.00 + VAT

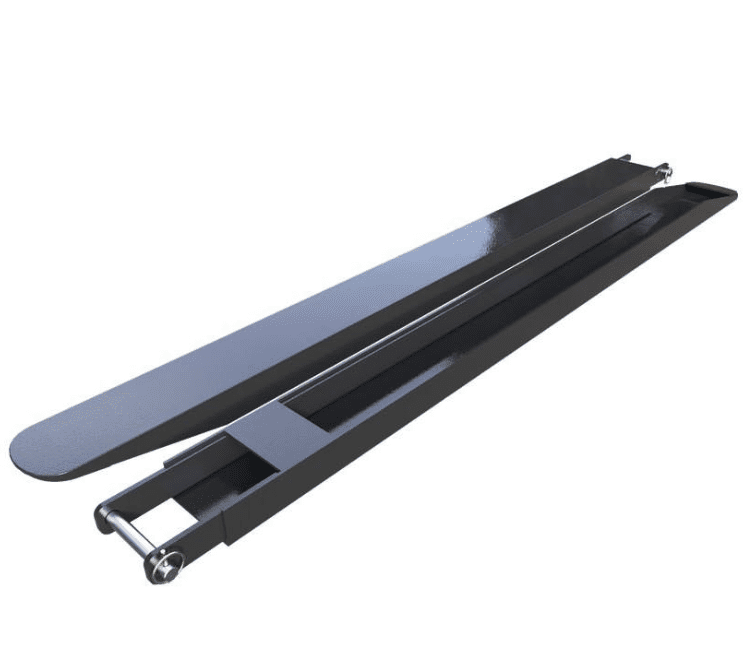

Our fully enclosed Fork Extensions are made from pressed 5mm steel and allow for longer reach enabling loads to be handled safely.

SKU: N/A Categories: ,

Description

Our Heavy Duty Fork Extensions are ideal for safe and stable handling of loads which are longer than the forklift forks, offering long reach and stabilising capabilities, whilst retaining the manoeuvrability of the lift truck for conventional operating.

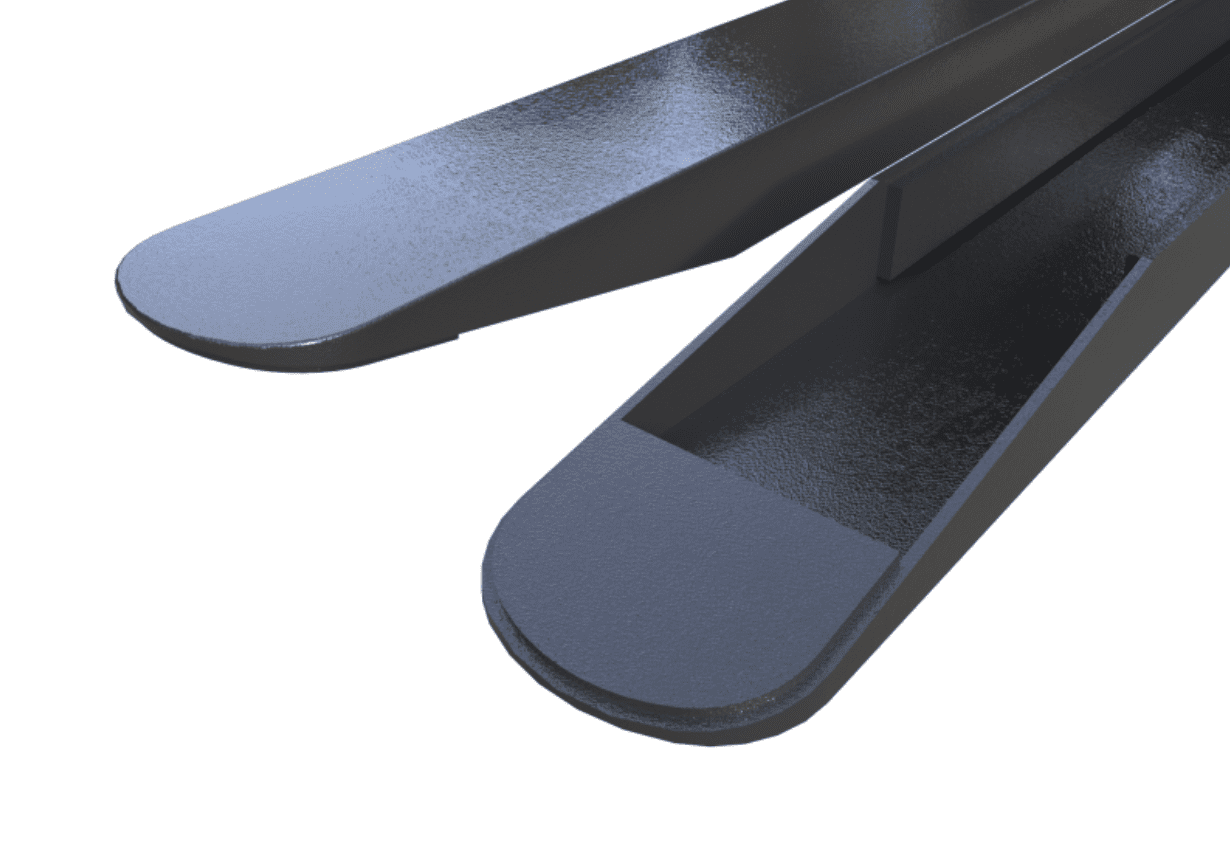

Manufactured from heavy duty 5mm thick steel with additional 8mm thick internal strengthening plates, all our  fork extensions incorporate a fully rounded toe, with heavy duty capping, for easy entry into and out of loads or pallets.

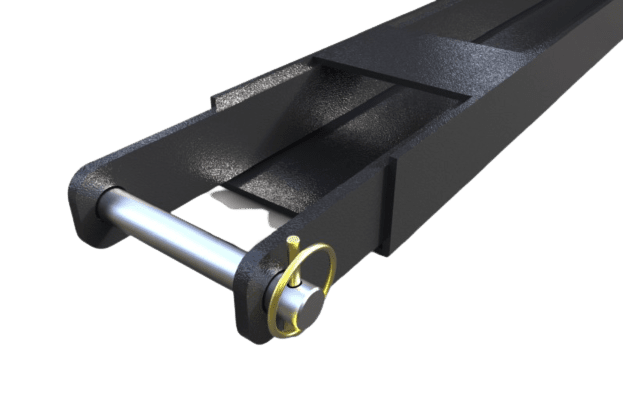

A removable heel pin allows for drive in entry, negating the need for manual lifting (in compliance with Health & Safety manual lifting regulations), whilst ensuring the fork extensions are safely secured to the truck forks.

For safety reasons, the fork extensions encompass a rear strap ‘closed base’ design, in keeping with BS EN recommended standards.

Manufactured to conform to ISO 13284 British Standards, our forklift extensions offer the perfect solution to long load stability handling and like all our forklift attachments, will come fully tested and certified to comply with the latest Health & Safety Regulations.

N.B. Fork extension length should not exceed existing fork length by more that 66%

Available Heavy Duty Fork Extensions sizes:

Model 80/1200 | Fork Width 80mm | Extension Length 1200mm | Max Fork Section 80mm x 50mm

Model 80/1500 | Fork Width 80mm | Extension Length 1500mm | Max Fork Section 80mm x 50mm

Model 80/1650 | Fork Width 80mm | Extension Length 1650mm | Max Fork Section 80mm x 50mm

Model 80/1800 | Fork Width 80mm | Extension Length 1800mm | Max Fork Section 80mm x 50mm

Model 100/1200 | Fork Width 100mm | Extension Length 1200mm | Max Fork Section 100mm x 50mm

Model 100/1350 | Fork Width 100mm | Extension Length 1350mm | Max Fork Section 100mm x 50mm

Model 100/1500 | Fork Width 100mm | Extension Length 1500mm | Max Fork Section 100mm x 50mm

Model 100/1650 | Fork Width 100mm | Extension Length 1650mm | Max Fork Section 100mm x 50mm

Model 100/1800 | Fork Width 100mm | Extension Length 1800mm | Max Fork Section 100mm x 50mm

Model 100/2000 | Fork Width 100mm | Extension Length 2000mm | Max Fork Section 100mm x 50mm

Model 125/1200 | Fork Width 125mm | Extension Length 1200mm | Max Fork Section 125mm x 50mm

Model 125/1350 | Fork Width 125mm | Extension Length 1350mm | Max Fork Section 125mm x 50mm

Model 125/1500 | Fork Width 125mm | Extension Length 1500mm | Max Fork Section 125mm x 50mm

Model 125/1650 | Fork Width 125mm | Extension Length 1650mm | Max Fork Section 125mm x 50mm

Model 125/1800 | Fork Width 125mm | Extension Length 1800mm | Max Fork Section 125mm x 50mm

Model 125/2000 | Fork Width 125mm | Extension Length 2000mm | Max Fork Section 125mm x 50mm

Model 125/2200 | Fork Width 125mm | Extension Length 2200mm | Max Fork Section 125mm x 50mm

Model 150/1200 | Fork Width 150mm | Extension Length 1200mm | Max Fork Section 150mm x 60mm

Model 150/1350 | Fork Width 150mm | Extension Length 1350mm | Max Fork Section 150mm x 60mm

Model 150/1500 | Fork Width 150mm | Extension Length 1500mm | Max Fork Section 150mm x 60mm

Model 150/1650 | Fork Width 150mm | Extension Length 1650mm | Max Fork Section 150mm x 60mm

Model 150/1800 | Fork Width 150mm | Extension Length 1800mm | Max Fork Section 150mm x 60mm

Model 150/2000 | Fork Width 150mm | Extension Length 2000mm | Max Fork Section 150mm x 60mm

Model 150/2200 | Fork Width 150mm | Extension Length 2200mm | Max Fork Section 150mm x 60mm

Model 200/1500 | Fork Width 200mm | Extension Length 1500mm | Max Fork Section 200mm x 60mm

Model 200/1650 | Fork Width 200mm | Extension Length 1650mm | Max Fork Section 200mm x 60mm

Model 200/1800 | Fork Width 200mm | Extension Length 1800mm | Max Fork Section 200mm x 60mm

Model 200/2000 | Fork Width 200mm | Extension Length 2000mm | Max Fork Section 200mm x 60mm

Model 200/2000 | Fork Width 200mm | Extension Length 2000mm | Max Fork Section 200mm x 60mm

Need a different type of forklift attachment? View our full range here.

If you have any questions relating to this product or any in our range then please call 0330 043 3747 or email sales@tippingskips.co.uk and one of our team will be on hand to discuss your requirements, lead times, delivery options or simply advise on the most appropriate equipment for your needs.

Additional information

Size

Model 80/1200 – Fork Width 80mm – Extension Length 1200mm – Max Fork Section 80mm x 50mm, Model 80/1500 – Fork Width 80mm – Extension Length 1500mm – Max Fork Section 80mm x 50mm, Model 80/1650 – Fork Width 80mm – Extension Length 1650mm – Max Fork Section 80mm x 50mm, Model 80/1800 – Fork Width 80mm – Extension Length 1800mm – Max Fork Section 80mm x 50mm, Model 100/1200 – Fork Width 100mm – Extension Length 1200mm – Max Fork Section 100mm x 50mm, Model 100/1350 – Fork Width 100mm – Extension Length 1350mm – Max Fork Section 100mm x 50mm, Model 100/1500 – Fork Width 100mm – Extension Length 1500mm – Max Fork Section 100mm x 50mm, Model 100/1650 – Fork Width 100mm – Extension Length 1650mm – Max Fork Section 100mm x 50mm, Model 100/1800 – Fork Width 100mm – Extension Length 1800mm – Max Fork Section 100mm x 50mm, Model 100/2000 – Fork Width 100mm – Extension Length 2000mm – Max Fork Section 100mm x 50mm, Model 100/2200 – Fork Width 100mm – Extension Length 2200mm – Max Fork Section 100mm x 50mm, Model 100/2400 – Fork Width 100mm – Extension Length 2400mm – Max Fork Section 100mm x 50mm, Model 125/1200 – Fork Width 125mm – Extension Length 1200mm – Max Fork Section 125mm x 50mm, Model 125/1350 – Fork Width 125mm – Extension Length 1350mm – Max Fork Section 125mm x 50mm, Model 125/1500 – Fork Width 125mm – Extension Length 1500mm – Max Fork Section 125mm x 50mm, Model 125/1650 – Fork Width 125mm – Extension Length 1650mm – Max Fork Section 125mm x 50mm, Model 125/1800 – Fork Width 125mm – Extension Length 1800mm – Max Fork Section 125mm x 50mm, Model 125/2000 – Fork Width 125mm – Extension Length 2000mm – Max Fork Section 125mm x 50mm, Model 125/2200 – Fork Width 125mm – Extension Length 2200mm – Max Fork Section 125mm x 50mm, Model 125/2400 – Fork Width 125mm – Extension Length 2400mm – Max Fork Section 125mm x 50mm, Model 150/1200 – Fork Width 150mm – Extension Length 1200mm – Max Fork Section 150mm x 60mm, Model 150/1350 – Fork Width 150mm – Extension Length 1350mm – Max Fork Section 150mm x 60mm, Model 150/1500 – Fork Width 150mm – Extension Length 1500mm – Max Fork Section 150mm x 60mm, Model 150/1650 – Fork Width 150mm – Extension Length 1650mm – Max Fork Section 150mm x 60mm, Model 150/1800 – Fork Width 150mm – Extension Length 1800mm – Max Fork Section 150mm x 60mm, Model 150/2000 – Fork Width 150mm – Extension Length 2000mm – Max Fork Section 150mm x 60mm, Model 150/2200 – Fork Width 150mm – Extension Length 2200mm – Max Fork Section 150mm x 60mm, Model 150/2400 – Fork Width 150mm – Extension Length 2400mm – Max Fork Section 150mm x 60mm, Model 200/1500 – Fork Width 200mm – Extension Length 1500mm – Max Fork Section 200mm x 60mm, Model 200/1650 – Fork Width 200mm – Extension Length 1650mm – Max Fork Section 200mm x 60mm, Model 200/1800 – Fork Width 200mm – Extension Length 1800mm – Max Fork Section 200mm x 60mm, Model 200/2000 – Fork Width 200mm – Extension Length 2000mm – Max Fork Section 200mm x 60mm, Model 200/2000 – Fork Width 200mm – Extension Length 2000mm – Max Fork Section 200mm x 60mm, Model 200/2200 – Fork Width 200mm – Extension Length 2200mm – Max Fork Section 200mm x 60mm
